IEVref:445-01-11ID:
Language:enStatus: Standard
Term: pulse delayed relay
Synonym1:
Synonym2:
Synonym3:
Symbol:

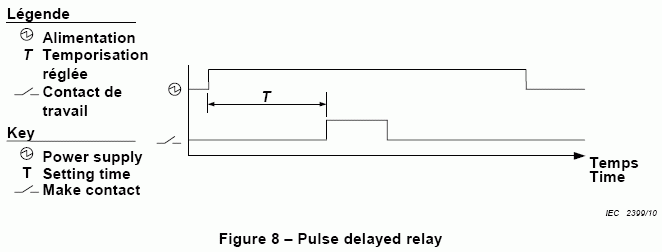

Definition: time relay in which the time delay starts when applying the power supply; the output momentarily switches for an interval to the operate condition after the time delay has elapsed (see Figure 8)

X

NOTE – Manufacturer should specify if interval is fixed or variable.


Publication date:2010-10
