IEVref:445-01-03ID:
Language:enStatus: Standard
Term: power off-delay relay
Synonym1: true off-delay relay
[Preferred]
Synonym2:
Synonym3:
Symbol:

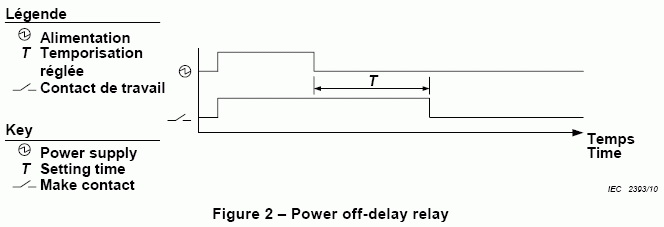

Definition: time relay in which the output immediately switches to the operate condition when applying the power supply; the time delay starts when the power supply is removed; the output switches to the release condition after the setting time has elapsed (see Figure 2)

X


Publication date:2010-10
