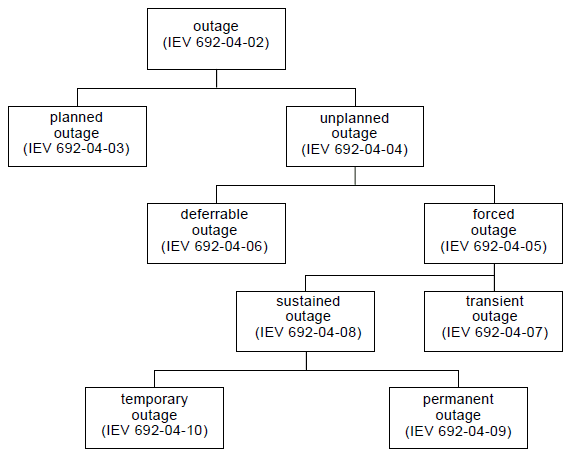

Figure 4 – Outage relationships

Note 1 to entry: In the context of electric power systems equipment, the term outage is used to indicate the existence of a disabled state.

Note 2 to entry: Although this entry was numbered 603-05-05 in IEC 60050-603:1986 the definition was not applicable to electric power systems.
