| Area |
 |
Piezoelectric, dielectric and electrostatic devices and associated materials for frequency control, selection and detection / Piezoelectric and dielectric resonators |
|
|
| IEV ref |
|
561-01-61 |
|
|
Symbol |
|
Cout |
|
|
en |
|
output capacitance, <of a two-port SAW resonator> |
|
|
capacitance which shunts the output port of the resonator equivalent circuit
Figure 4 – Equivalent circuit for a two-port SAW resonator |
|
|
fr |
|
capacité de sortie, <d’un résonateur OAS biporte> f |
|
|
capacité qui shunte le port de sortie du circuit équivalent du résonateur

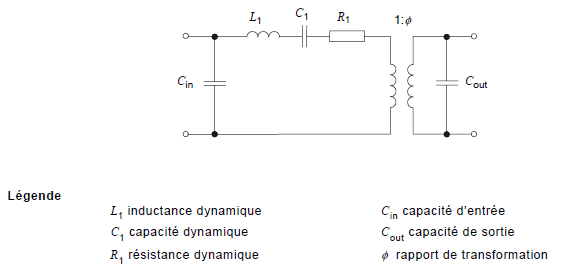

Figure 4 – Circuit équivalent d’un résonateur OAS biporte |
|
|
ar |
|
السعة الخارجة <لرنان ثنائى المأخذ باستخدام الموجة الصوتية السطحية SAW>
سعوية الخرج |
|
de |
|
Ausgangskapazität, <eines Zweitor-OFW-Resonators> f |
|
es |
|
capacidad de salida, <de un resonador OAS de dos puertos> |
|
it |
|
capacità di uscita, <di un risonatore SAW a due porte> |
|
ko |
|
출력 용량, <이단자쌍 에스에이더블유 공진기> |
|
ja |
|
出力容量, ＜２ポート形SAW共振子の＞ |
|
pl |
|
pojemność wyjściowa, <rezonatora czwórnikowego z SAW> f |
|
pt |
|
capacidade de saída , <de um ressoador OAS biporto> |
|
zh |
|
输出电容, <双端对声表面波谐振器的> |
