Area |
![](/icons/ecblank.gif) |
Lighting / Light sources |
![](/icons/ecblank.gif) |
|
IEV ref |
![](/icons/ecblank.gif) |
845-27-076 |
![](/icons/ecblank.gif) |
|
en |
![](/icons/ecblank.gif) |
optical beam axis |
![](/icons/ecblank.gif) |
![](/icons/ecblank.gif) |

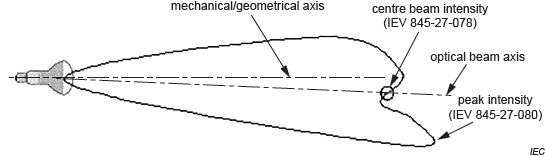

axis about which the luminous intensity distribution is substantially symmetrical Note 1 to entry: The optical beam axis is not necessarily the same as the lamp axis through the lamp cap or the lamp axis normal to a reference plane. The following figure illustrates the relation between the optical beam axis, the mechanical/geometrical axis, the peak intensity and the centre beam intensity.
|
![](/icons/ecblank.gif) |
|
fr |
![](/icons/ecblank.gif) |
axe optique du faisceau, m |
![](/icons/ecblank.gif) |
![](/icons/ecblank.gif) |

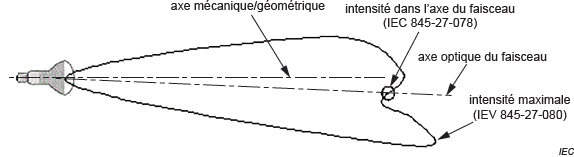

axe par rapport auquel la répartition de l'intensité lumineuse est pratiquement symétrique Note 1 à l'article: L'axe optique du faisceau n'est pas nécessairement le même que celui de la lampe passant par le culot ou l'axe de la lampe perpendiculaire à un plan de référence. La figure suivante illustre la relation entre l'axe optique du faisceau, l'axe mécanique/géométrique, l'intensité maximale et l'intensité dans l'axe du faisceau.
|
![](/icons/ecblank.gif) |
|
ar |
![](/icons/ecblank.gif) |
محور الْحزمةالإشعاعية البصرية |
|
cs |
![](/icons/ecblank.gif) |
osa optického svazku paprsků |
|
de |
![](/icons/ecblank.gif) |
optische Strahlachse, f |
|
it |
![](/icons/ecblank.gif) |
asse ottico del fascio |
|
ko |
![](/icons/ecblank.gif) |
광빔축 |
|
ja |
![](/icons/ecblank.gif) |
ビーム中心軸 |
|
nl |
nl |
optische-bundelas |
|
|
nl |
be |
optische stralingsas, f |
|
|
pl |
![](/icons/ecblank.gif) |
oś optyczna wiązki, f |
|
pt |
![](/icons/ecblank.gif) |
eixo óptico do feixe |
|
zh |
![](/icons/ecblank.gif) |
光束轴线 |
